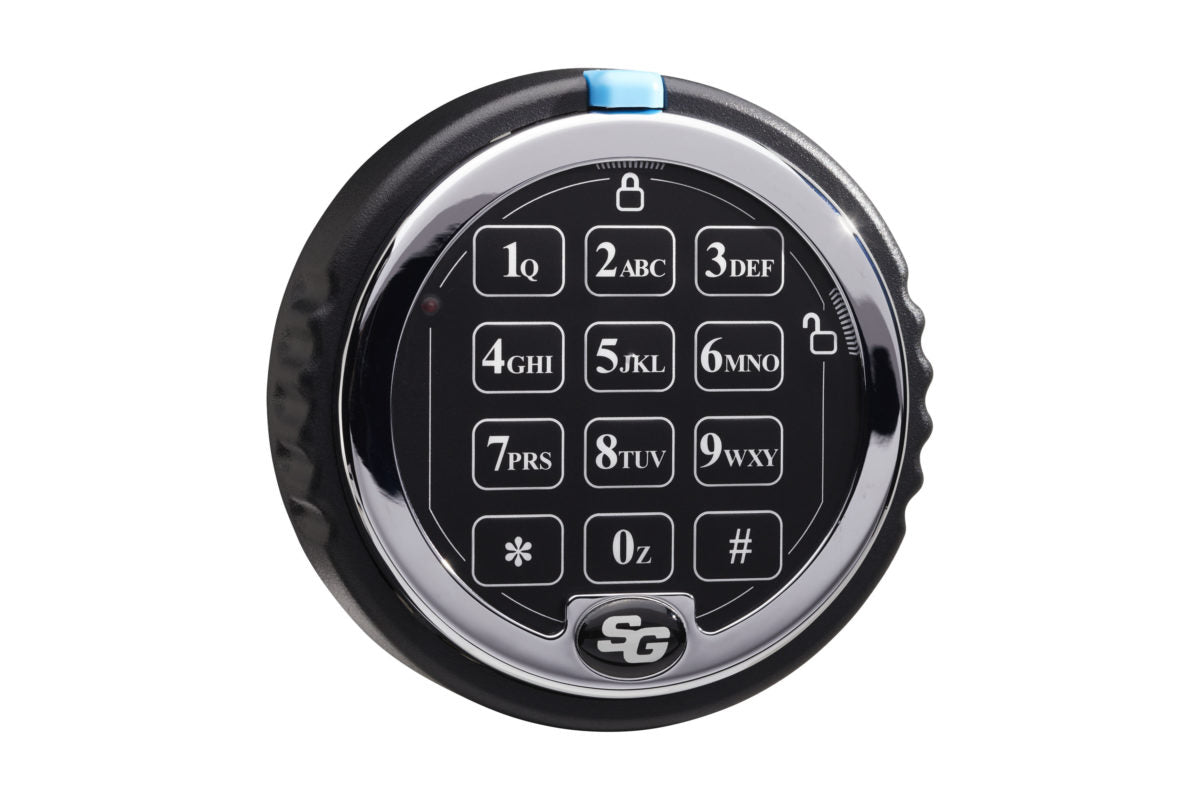

S&G LOCK MODEL ZO3

The S&G D-Drive™ & Rotary Drive lock combines ease of operation with security and flexibility. Its advanced electronic circuit design makes it easy to open and easy to change codes. Follow these instructions carefully to get the best possible use from your lock. S&G DIRECT DRIVE / ZO3 & ROTARY DRIVE

• The lock can be set to accept a supervisor code, up to seven different user codes, and a time delay override code. The master code holder and the supervisor code holder (if a supervisor code is set) are responsible for maintaining the number of active users programmed into each lock. The master code holder and the supervisor code holder can create and delete user codes. • The master code is designated as code #0. The supervisor code (if set) is designated as code #1. The user codes (if set) are designated by user position numbers 2, 3, 4, 5, 6, 7, and 8. The time delay override code (if set) is designated as code #9. • Each time a button is pressed, the lock acknowledges it by sounding a “beep,” and the LED on the keypad will light momentarily as the “beep” sounds. If it does not, check your battery (or batteries) to make sure it is fresh and connected properly, then try again.

• All codes end with #. This signals the lock that you have finished entering all digits of the code.

• If you pause more than 10 seconds between button presses when entering a code, the lock will assume you do not want to continue, and it will reset itself to the original code. To open the lock, begin the code entry sequence once again from the first step.

• If you realize you have pressed an incorrect button when entering a code, press ** or simply pause ten seconds or more, then begin entering your code again.

• If five incorrect codes are entered in a row, the lock will shut down for ten minutes.

This is a security feature. Entering a code during this period will result in two long error tones (braps). Pressing any buttons during the lockout period will not affect the penalty timer. After ten minutes, the lock should operate normally. • Avoid codes which can be easily guessed. Note: This lock has been Listed by Underwriters Laboratories for use with the following S&G keypad(s): 6130-2XX and 6130-3XX Instructio
